Status

Active

Launch

2017

Space organisation

ESA

Type

UV / visible / NIR / SWIR (270 – 2385 nm)

Orbit

Geocentric (824 km altitude)

Instrument with SRON contribution

TROPOMI

Sentinel-5P orbit wave

Methane as a powerful greenhouse gas

To comply with the Paris climate agreement and the Global Methane Pledge, it is essential to measure how much and where greenhouse gases are emitted. After CO2, methane is the second largest contributor to climate change. It is a lot less present in the atmosphere, but because it is such a powerful greenhouse gas, it accounts for a third of global warming. Over a hundred years, a ton of methane is about 30 times more powerful than a ton of CO2.

Read more

Most methane emissions come from humans

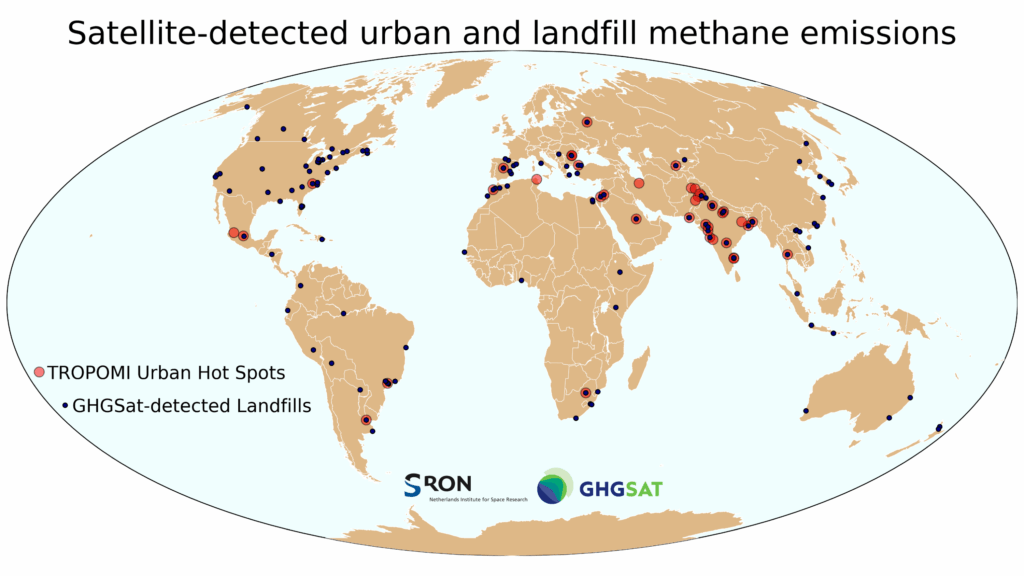

Two-thirds of global methane emissions come from human activity. LINK naar thema methaan). Rubbish dumps, oil and gas plants, coal mines, livestock farming and rice paddies are the biggest culprits. Livestock and rice paddies give off a diffuse haze. But the first three are point sources, visible from space as plumes. These sources often involve leakage or emissions that are mostly easily preventable. Because a methane molecule disappears from the atmosphere after only 10 years on average, the prevention of emissions is quickly reflected in global temperatures.

Read more

Fires better mapped

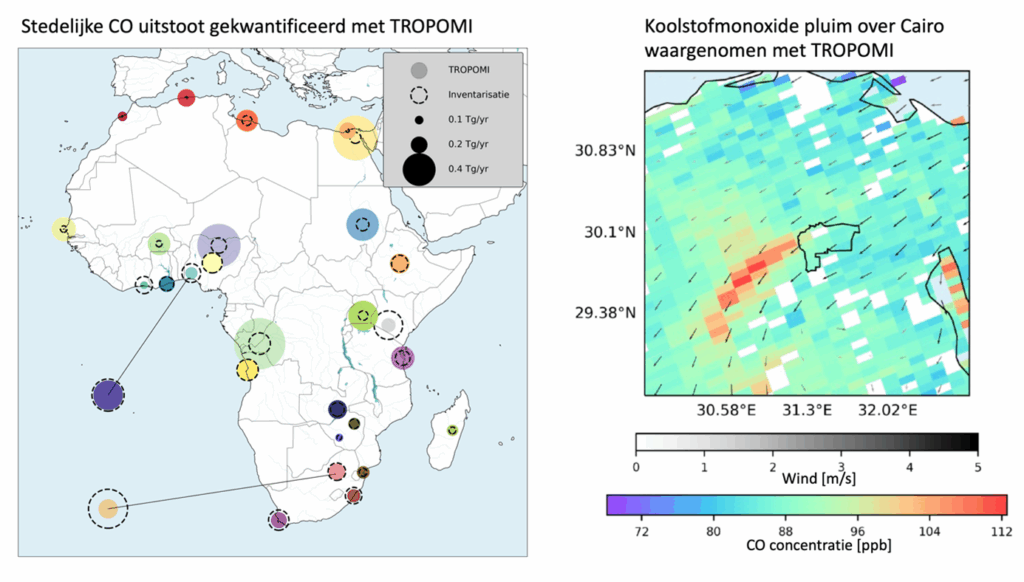

Burning biomass releases pollutant gases such as carbon monoxide. These can be natural fires, but also, for example, burning agricultural residues lit by farmers. We use daily maps of carbon monoxide concentrations when studying the impact on air quality and climate.

Read more
Sentinel5p Worldmap detections 2021
Read more

Daily global coverage

With daily global coverage, the TROPOspheric Monitoring Instrument (TROPOMI) measures a multitude of gases in the atmosphere, including ozone, methane, nitrogen dioxide, sulphur dioxide and carbon monoxide. It measures sunlight that reflects off the Earth’s surface and finds its way to the instrument through the atmosphere. In the process, the gases in the atmosphere leave their fingerprints in the spectrum of sunlight.

Read more

Sun in the back

Sentinel-5p flies almost straight over the poles, so it always flies over the same time zone on the day side, namely at noon, with the sun at its back. With its wide field of view of 2,600 kilometres, it scans the entire Earth like a broom as it passes under TROPOMI’s polar orbit. Across that wide broom strip, the instrument records hundreds of pixels measuring 7×5.5 km2 within a second.

Read more

Immersed grating

A grating inside the instrument breaks up the incident light into colours to create a spectrum. SRON engineers have made it so compact that it fits inside a prism.  Such an ‘immersed grating’ breaks up the colours more strongly than a traditional grating, allowing the instrument to be made more compact. In this case, it is the short-wavelength infrared (SWIR) spectrometer, which measures methane, carbon monoxide and water. SRON is the scientific lead for this.

Read more
Sentinel5p Weekly Methane Plumes 2024 wk49 v20241209 1
Read more

Our partners

TROPOMI is a collaboration between Airbus Netherlands, KNMI, SRON and TNO, commissioned by the NSO and ESA. Airbus Netherlands is prime contractor for the development of the instrument. TNO is responsible for the optical design. Scientific leadership is in the hands of KNMI and SRON. TROPOMI is funded by the Ministry of Economic Affairs, the Ministry of Education, Culture and Science and the Ministry of Infrastructure and the Environment.
